How Car Brake system works

The brake system is an integral component of any vehicle, playing a critical role in ensuring safety and control during motion.

This article provides an in-depth exploration of the brake system, covering its types, components, and the science behind its functioning.

Types of Brake Systems

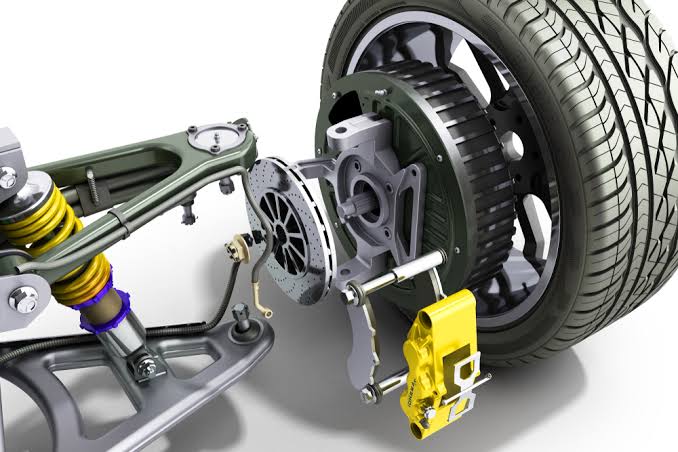

1. Disc Brakes

These are the most common type of brakes in modern vehicles.

They consist of a disc or rotor attached to the wheel, and when the brake pedal is pressed, brake calipers squeeze brake pads against the disc, creating friction and slowing down the wheel.

2. Drum Brakes

While less common in modern vehicles, drum brakes are still found in some rear-wheel-drive and older models.

Drum brakes use brake shoes that press against the inner surface of a drum to create friction and decelerate the vehicle.

3. Anti-lock Braking System (ABS)

ABS is a safety feature that prevents wheel lock-up during hard braking.

It modulates brake pressure, allowing the driver to maintain steering control in emergency situations.

Key Components

1. Brake Pedal

The brake pedal is the interface between the driver and the brake system.

When the driver presses the pedal, it activates the brake system, initiating the process of slowing down or stopping the vehicle.

2. Master Cylinder

Located under the hood, the master cylinder converts the mechanical force from the brake pedal into hydraulic pressure.

This pressure is then transmitted to the brake calipers or wheel cylinders.

3. Brake Lines and Hoses

Brake fluid is conveyed from the master cylinder to the brake components through a system of brake lines and hoses.

These components must be in good condition to ensure the efficient transfer of hydraulic pressure.

4. Brake Calipers and Pads (Disc Brakes) / Brake Drums and Shoes (Drum Brakes)

These components are responsible for creating friction to slow down the wheels.

In disc brakes, calipers squeeze brake pads against the disc, while in drum brakes, brake shoes press against the inner surface of the drum.

5. Brake Fluid Reservoir

Brake fluid is essential for the hydraulic system’s proper functioning.

The reservoir stores brake fluid, and its level should be regularly checked and topped up to ensure optimal performance.

Brake System Operation

When the brake pedal is depressed, the master cylinder generates hydraulic pressure.

This pressure is then transmitted through the brake lines to either the brake calipers (disc brakes) or wheel cylinders (drum brakes).

The resulting force causes the brake pads or shoes to engage with the rotating components, creating friction and slowing down the vehicle.

Maintenance and Care

1. Brake Inspections

Regularly inspect the brake system for signs of wear, such as thin brake pads or unevenly worn rotors.

Addressing these issues promptly can prevent more significant problems.

2. Brake Fluid Checks

Ensure the brake fluid level is within the recommended range. Contaminated or low brake fluid can compromise braking performance.

3. Pad and Rotor Replacement

Replace brake pads and rotors as recommended by the vehicle manufacturer. Worn-out pads and rotors reduce braking efficiency.

4. Routine Bleeding

Periodically bleed the brake system to remove air bubbles and maintain proper hydraulic pressure.

In conclusion, understanding the brake system’s intricacies is vital for both vehicle owners and drivers.

Regular maintenance, timely inspections, and using the right components contribute to a reliable and effective brake system, ensuring a safer driving experience for all road users.
